| Production |
| Manufacturer: | CaseIH
|
| Variants |
| D33: | gear
|
| DX33: | hydrostatic
|
| CaseIH DX33 Power |
| Engine (gross): | 33 hp
24.6 kW
|
| PTO (claimed): | 26.9 hp
20.1 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Cab: | Foldable ROPS. Optional canopy, soft cab, and radio.
|
| Transmission: | hydrostatic
|
| Photos |

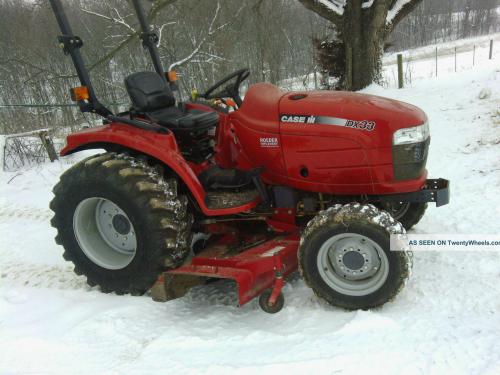

| | CaseIH DX33 photos... |
| Hydraulics |
| Total flow: | 7.6 gpm
28.8 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift (at 24"/610mm): | 1,635 lbs
741 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Mid PTO: | standard
|
| Mid RPM: | 2000
|
| Dimensions & Tires |
| Front tire: | 7.00x14
|
| Rear tire: | 11.2x24
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 40
|
| Battery CCA: | 420
|
| Battery volts: | 12
|
|
