CaseIH DX45 Tractors

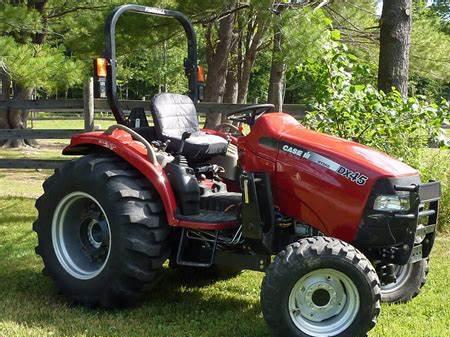

CaseIH DX45
Power: 45 hp
Date of manufacture :
2001 - 2006
Production
Manufacturer:CaseIH
Type:Compact Utility tractor
Variants
D45:shuttle
DX45:hydrostatic
CaseIH DX45 Power
Engine (gross):45 hp
33.6 kW
PTO (claimed):37.8 hp
28.2 kW
CaseIH DX45 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:mechanical wet disc
Cab:Foldable ROPS. Optional canopy, soft cab, and radio.
Transmission:hydrostatic
Photos
CaseIH DX45 photos...
Hydraulics
Valves:1 or 2
Pump flow:9.8 gpm
37.1 lpm
Total flow:14.9 gpm
56.4 lpm
Steering flow:5.1 gpm
19.3 lpm
Tractor hitch
Rear Type:I
Rear lift (at 24"/610mm):2,025 lbs
918 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Mid PTO:optional
Mid RPM:2000
Dimensions & Tires
Wheelbase:73.5 inches
186 cm
Weight:3,417 lbs
1549 kg
Front tire:7.00-16
Rear tire:13.6x24
Electrical
Ground:negative
Charging system:alternator
Charging amps:40
Battery CCA:600
Battery volts:12
