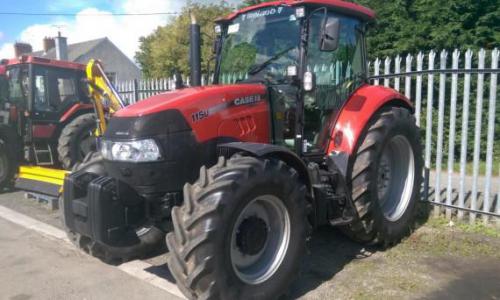

CaseIH Farmall 105V Tractors
 |
|
Power: 106 hp
Date of manufacture : 2014 - 2016 |
| Production |
| Manufacturer: | CaseIH
|
| Original price: | $53,125 (2014 Mech Shuttle ROPS )
|
| Original price: | $67,691 (2014 32-speed Cab )
|
| CaseIH Farmall 105V Power |
| Engine (gross): | 106 hp
79.0 kW
|
| PTO (claimed): | 92 hp
68.6 kW
|
| CaseIH Farmall 105V Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Two-post foldable mid ROPS. Cab optional.
|
| Transmissions: | 16-speed mechanical shuttle
|
| | 16-speed power shuttle
|
| | 32-speed power shuttle
|
| Hydraulics |
| Type: | open center
|
| Pressure: | 2755 psi
190.0 bar
|
| Rear valves: | 2 or 3
|
| Pump flow: | 16.9 gpm
64.0 lpm
|
| Total flow: | 26.4 gpm
99.9 lpm
|
| Steering flow: | 9.2 gpm
34.8 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | mechanical draft control
|
| Rear lift (at 24"/610mm): | 4045 lbs
1834 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | hydraulic dry disc
|
| Rear RPM: | 540
|
| | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 85.8 inches
217 cm
|
| Weight: | 5979 to 6151 pounds
|
| Front tire: | 200/70R16
|
| Rear tire: | 360/70R24
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Battery CCA: | 800
|
| Battery volts: | 12
|
|
