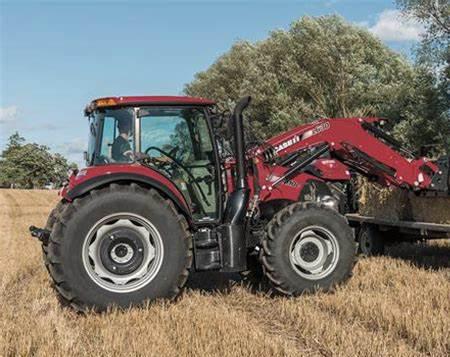

CaseIH Farmall 110C Tractors
 |
|
Power: 107 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| Original price: | $55,747 (2016 mech-shuttle ROPS 2WD )
|
| Original price: | $80,543 (2016 Hi-Lo Cab 4WD )
|
| CaseIH Farmall 110C Power |
| Engine: | 107 hp
79.8 kW
|
| PTO (claimed): | 93 hp
69.4 kW
|
| Drawbar (tested): | 73.4 hp
54.7 kW
|
| PTO (tested): | 96.0 hp
71.6 kW
|
| CaseIH Farmall 110C Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post ROPS. Cab optional with air-conditioning.
|
| Transmissions: | 12-speed mechanical shuttle
|
| | 12-speed power shuttle
|
| | 24-speed
|
| Hydraulics |
| Type: | open center
|
| Valves: | 2 or 3
|
| Pump flow: | 16..9 gpm
60.6 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | top link draft sensing
|
| Rear lift (at 24"/610mm): | 4339 lbs
1968 kg
|
| | 5620 lbs
2549 kg *Optional
|
| Rear Arms: | telescopic link ends
|
| Drawbar: | swinging extendable drawbar
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| | 540/540E*Optional
|
| | 540/1000*Optional
|
| Dimensions & Tires |
| 2WD Wheelbase: | 92.2 inches
234 cm
|
| 4WD Wheelbase: | 90 inches
228 cm
|
| Weight: | 6989 to 8157 pounds
|
| Front tire: | 7.50x16
|
| 2WD Rear tire: | 16.9R30
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
|
