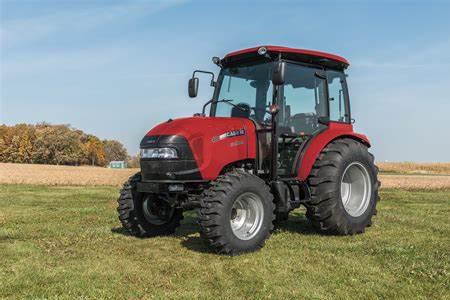

CaseIH Farmall 40C Tractors
 |
|
Power: 40 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Compact Utility tractor
|
| Original price: | $30,021 (2016 shuttle ROPS )
|
| Original price: | $37,285 (2016 hydro cab )
|
| CaseIH Farmall 40C Power |
| Engine: | 40.2 hp
30.0 kW
|
| Shuttle PTO (claimed): | 32.4 hp
24.2 kW
|
| Hydro PTO (claimed): | 30.8 hp
23.0 kW
|
| CaseIH Farmall 40C Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post folding ROPS. Cab optional.
|
| Transmissions: | 16-speed synchronized shuttle
|
| | hydrostatic
|
| Hydraulics |
| Type: | open center
|
| Valves: | 1 or 2
|
| Pump flow: | 8.2 gpm
31.0 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position control
|
| Rear lift (at ends): | 2756 lbs
1250 kg
|
| Rear lift (at 24"/610mm): | 2469 lbs
1119 kg
|
| Rear Arms: | telescopic link ends
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 73.2 inches
185 cm
|
| Weight: | 3869 to 4380 pounds
|
| Front tire: | 9.5x16
|
| Rear tire: | 13.6-24
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 85
|
| Battery volts: | 12
|
|
