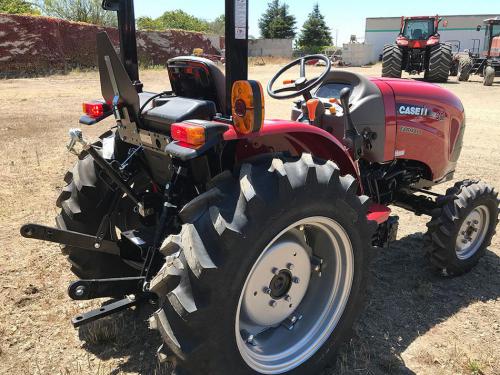

CaseIH Farmall 35A Tractors
 |
|
Power: 35 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Compact Utility tractor
|
| Original price: | $20,207 (2021 gear )
|
| CaseIH Farmall 35A Power |
| Engine: | 35 hp
26.1 kW
|
| Gear PTO (claimed): | 29.7 hp
22.1 kW
|
| Hydro PTO (claimed): | 28 hp
20.9 kW
|
| CaseIH Farmall 35A Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Brakes: | wet disc
|
| Cab: | Two-post folding ROPS.
|
| Transmissions: | 12-speed mechanical shuttle
|
| | hydrostatic
|
| Hydraulics |
| Type: | open center
|
| Rear valves: | 1*Optional
|
| Pump flow: | 8.2 gpm
31.0 lpm
|
| Gear Steering flow: | 4.2 gpm
15.9 lpm
|
| Hydro Steering flow: | 5.3 gpm
20.1 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position control
|
| Rear lift (at ends): | 1808 lbs
820 kg
|
| Rear lift (at 24"/610mm): | 1433 lbs
650 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540
|
| Mid PTO: | independent*Optional
|
| Mid RPM: | 2000
|
| Dimensions & Tires |
| Wheelbase: | 67.5 inches
171 cm
|
| Weight: | 3067 lbs
1391 kg
|
| Front tire: | 7x14
|
| Rear tire: | 11.2x24
|
| Electrical |
| Ground: | negative
|
| Charging amps: | 70
|
| Battery volts: | 12
|
|
