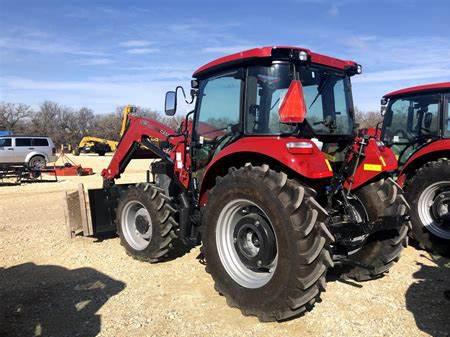

CaseIH Farmall 75A Tractors
 |
|
Power: 75 hp
Date of manufacture : 2010 - 2015 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| Factory: | India
|
| CaseIH Farmall 75A Power |
| Engine (gross): | 75 hp
55.9 kW
|
| PTO (claimed): | 66 hp
49.2 kW
|
| PTO (tested): | 68.18 hp
50.8 kW
|
| CaseIH Farmall 75A Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear differential lock with foot pedal, limited slip 4WD front axle
|
| Steering: | hydrostatic power
|
| Brakes: | differential mechanical dry disc
|
| Cab: | Two-post foldable ROPS.
|
| Transmission: | 8-speed partially synchronized
|
| Capacity |
| Fuel: | 16.4 gal
62.1 L
|
| Steering: | 8.5 qts
8.0 L
|
| Hydraulics |
| Type: | open center fixed displacement gear pump
|
| Valves: | 1 or 2
|
| Pump flow: | 10.4 gpm
39.4 lpm
|
| Total flow: | 18.7 gpm
70.8 lpm
|
| Steering cap.: | 8.5 qts
8.0 L
|
| Tractor hitch |
| Rear Type: | 2/1
|
| Control: | position control and mechanical draft sensing
|
| Rear lift (at 24"/610mm): | 2,954 lbs
1339 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Weight: | 5059 to 5688 pounds
|
| Front tire: | 7.50x16
|
| 2WD Rear tire: | 16.9x30
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 65
|
| Charging volts: | 12
|
| Battery CCA: | 800
|
| Battery volts: | 12
|
|
