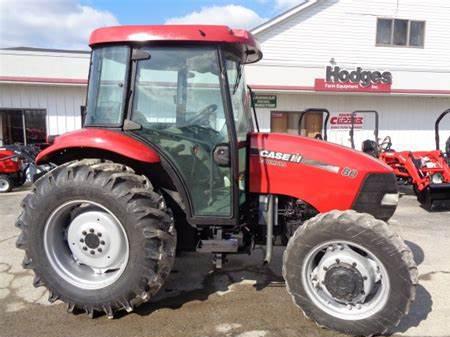

CaseIH Farmall 80 Tractors
 |
|
Power: 72 hp
Date of manufacture : 2008 - 2010 |
| Production |
| Distributor: | CaseIH
|
| Manufacturer: | Turk Tractor
|
| Type: | Utility tractor
|
| Factory: | Ankara, Turkey
|
| CaseIH Farmall 80 Power |
| Engine (gross): | 72 hp
53.7 kW
|
| PTO (claimed): | 62 hp
46.2 kW
|
| Drawbar (tested): | 59.7 hp
44.5 kW
|
| PTO (tested): | 72.1 hp
53.8 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear lock
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Flat deck platform with ROPS. Cab optional.
|
| Transmissions: | 12-speed mechanical shuttle
|
| | 20-speed mechanical shuttle with creeper
|
| Hydraulics |
| Type: | open center
|
| Rear valves: | 1 to 3
|
| Pump flow: | 13.6 gpm
51.5 lpm
|
| Total flow: | 21.7 gpm
82.1 lpm
|
| Steering flow: | 8.1 gpm
30.7 lpm
|
| Tractor hitch |
| Rear Type: | 2
|
| Control: | position control and mechanical lower-link draft sensing
|
| Rear lift (at 24"/610mm): | 5,025 lbs
2279 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | mechanical dry clutch
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| 2WD Wheelbase: | 91 inches
231 cm
|
| 4WD Wheelbase: | 87 inches
220 cm
|
| Weight: | 5702 to 6915 pounds
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 85
|
| Battery CCA: | 800
|
| Battery volts: | 12
|
|
