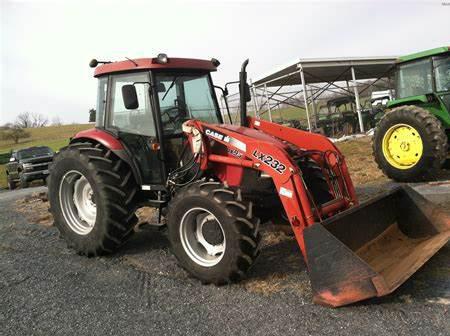

CaseIH JX95 Tractors

CaseIH JX95
Power: 93 hp
Date of manufacture :
2002 - 2009
Production
Distributor:CaseIH
Manufacturer:Turk Tractor
Type:Utility tractor
Factory:Turkey
Variants
JX95:utility
JX95HC:high-crop
CaseIH JX95 Power
Engine (gross):93 hp
69.4 kW
PTO (claimed):80 hp
59.7 kW
Drawbar (tested):66.3 hp
49.4 kW
PTO (tested):83.8 hp
62.5 kW
CaseIH JX95 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:hydrostatic power
Brakes:independent wet disc
Cab:Two-post ROPS. Cab optional.
Transmissions:12-speed mechanical shuttle
 20-speed creeper
Hydraulics
Type:open center
Valves:3
Pump flow:10.6 gpm
40.1 lpm
 13.6 gpm
51.5 lpm *Optional, standard in USA
Tractor hitch
Rear Type:II
Rear lift:7718 lbs
3500 kg *Advertised. 3820 lbs actual lift during testing
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E
 540/1000*Optional
Dimensions & Tires
2WD Wheelbase:94 inches
238 cm
4WD Wheelbase:91.8 inches
233 cm
Weight:6790 to 7615 pounds
JX95 Serial Numbers
2003:HFJ000001
2004:HFJ013982

how to read serial numbers...

Electrical
Ground:negative
Battery volts:12
