| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| Factory: | Jesi, Italy
|

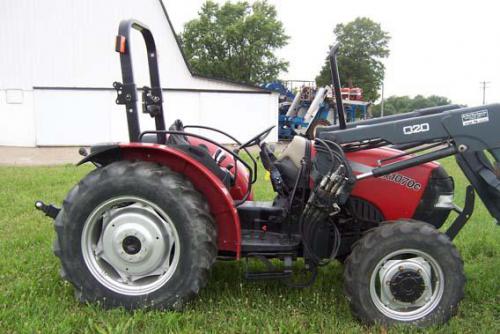

| CaseIH JX1070C Power |
| Engine (gross): | 70 hp
52.2 kW
|
| PTO (claimed): | 57 hp
42.5 kW
|
| Drawbar (tested): | 51.0 hp
38.0 kW
|
| PTO (tested): | 60.6 hp
45.2 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Two-post folding ROPS. Cab optional.
|
| Transmissions: | 16-speed mechanical shuttle
|
| | 16-speed power shuttle
|
| Hydraulics |
| Type: | open center
|
| Pressure: | 2755 psi
190.0 bar
|
| Valves: | 1 to 4
|
| Pump flow: | 12.4 gpm
46.9 lpm
|
| | 16.9 gpm
64.0 lpm *Standard with cab, optional with ROPS.
|
| Steering flow: | 7.4 gpm
28.0 lpm
|
| | 9.4 gpm
35.6 lpm *Standard with cab, optional with ROPS.
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | mechanical lower-link draft sensing.
|
| Rear lift: | 3960 lbs
1796 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | mechanical dry disc
|
| Rear RPM: | 540 (1.375)
|
| Dimensions & Tires |
| 2WD Wheelbase: | 83.9 inches
213 cm
|
| 4WD Wheelbase: | 81.3 inches
206 cm
|
| Weight: | 6085 to 6615 pounds
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| ROPS Charging amps: | 65
|
| Cab Charging amps: | 85
|
| Battery CCA: | 730
|
| Battery volts: | 12
|
|
