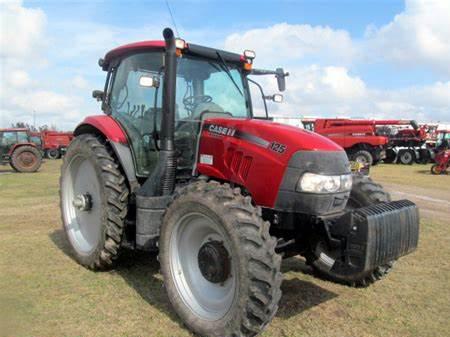

CaseIH Maxxum 125 Tractors
 |
|
Power: 125 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | Basildon, England
|
| Original price: | $97,541 (2011 PRO)
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | hydraulic optional
|
| Cab: | Two post ROPS. Cab optional. Deluxe cab standard on 125 PRO model
|
| Transmissions: | 12-speed mechanical shuttle
|
| | 24-speed partial power shift
|
| | 16-speed partial power shift
|
| | 17-speed partial power shift
|
| Photos |
| | CaseIH Maxxum 125 photos... |
| Hydraulics |
| Type: | open center
|
| | closed center PFC (125 PRO)
|
| Valves: | 2 to 4
|
| Pump flow: | 16.6 gpm
62.8 lpm
|
| | 26.5 gpm
100.3 lpm (PFC)
|
| Total flow: | 27.1 gpm
102.6 lpm
|
| | 37 gpm
140.0 lpm (PFC)
|
| Steering flow: | 10.5 gpm
39.7 lpm
|
| Tractor hitch |
| Rear Type: | 2/3N
|
| Control: | mechanical draft control
|
| | electronic draft control (125 PRO)
|
| Rear lift: | 7,509 lbs
3406 kg
|
| | 8,813 lbs
3997 kg (optional)
|
| | 9,620 lbs
4363 kg (125 PRO)
|
| | 12,185 lbs
5527 kg (125 PRO optional)
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic wet disc
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 104.4 inches
265 cm (2WD)
|
| | 104.7 inches
265 cm (4WD)
|
| Weight: | 9466 to 12270 pounds
|
| Front tire: | 11.00-16
|
| Rear tire: | 18.4R38 (2WD)
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Battery CCA: | 960
|
| Battery volts: | 12
|
|
