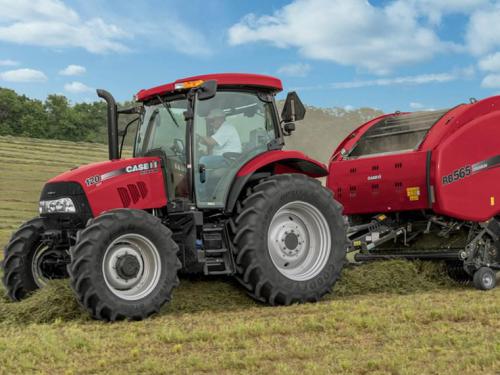

CaseIH Maxxum 120 Tractors
 |
|
Power: 129 hp
Date of manufacture : 2007 - 2014 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | Basildon, England
|
| Original price: | $87,799 (2011)
|
| CaseIH Maxxum 120 Power |
| Engine: | 129 hp
96.2 kW
|
| PTO (claimed): | 100 hp
74.6 kW
|
| Drawbar (tested): | 81.0 hp
60.4 kW
|
| PTO (tested): | 117.9 hp
87.9 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | hydraulic optional
|
| Cab: | Cab standard with air-conditioning.
|
| Transmissions: | 16-speed partial power shift
|
| | 17-speed partial power shift
|
| Hydraulics |
| Type: | closed center PFC
|
| Valves: | 2 to 4
|
| Pump flow: | 26.5 gpm
100.3 lpm
|
| Total flow: | 37 gpm
140.0 lpm
|
| Steering flow: | 10.5 gpm
39.7 lpm
|
| Tractor hitch |
| Rear Type: | 2/3N
|
| Control: | electronic draft control
|
| Rear lift: | 9,620 lbs
4363 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic wet disc
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 94.9 inches
241 cm
|
| Weight: | 10626 to 12465 pounds
|
| Front tire: | 14.9R28
|
| Rear tire: | 18.4R38
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Battery CCA: | 960
|
| Battery volts: | 12
|
|
