| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | Basildon, England
|
| Original price: | $166,225 (2015 CVT )
|
| Original price: | $157,083 (2015 power shift )
|
| CaseIH Puma 165 Power |
| Engine: | 165 hp
123.0 kW
|
| PTO (claimed): | 135 hp
100.7 kW
|
| Drawbar (tested): | 109.4 hp
81.6 kW
|
| PTO (tested): | 152.2 hp
113.5 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Trailer brakes: | hydraulic*Optional
|
| | pneumatic*Optional
|
| Cab: | Cab standard with air-conditioning.
|
| Transmissions: | 18-speed full power shift
|
| | continuously variable transmission (CVT)
|
| Photos |

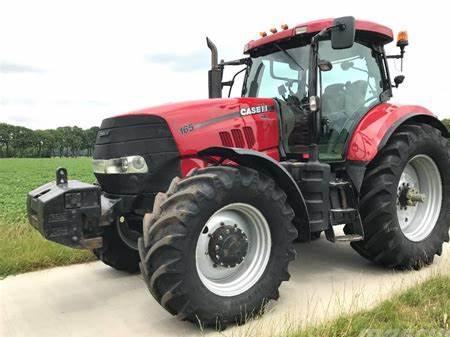

| | CaseIH Puma 165 photos... |
| Hydraulics |
| Type: | closed center pressure flow compensating
|
| Valves: | 3 to 5
|
| Pump flow: | 26.5 gpm
100.3 lpm
|
| Total flow: | 43.5 gpm
164.6 lpm
|
| Steering flow: | 17 gpm
64.3 lpm
|
| Tractor hitch |
| Rear Type: | II/IIIN
|
| Rear lift: | 7900 lbs
3583 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000 (1.375)
|
| | 1000/1000E (1.75)
|
| Dimensions & Tires |
| Wheelbase: | 107.6 inches
273 cm
|
| | 109.8 inches
278 cm *With suspended front axle
|
| Weight: | 13900 to 14500 pounds
|
| Front tire: | 380/85R30
|
| Rear tire: | 460/85R42
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 150
|
| Battery volts: | 12
|
|
