| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factories: | Basildon, England
|
| | St. Valentin, Austria
|
| Original price: | $130,686 (2010 )
|
| CaseIH Puma 180 Power |
| Engine: | 180 hp
134.2 kW
|
| PTO (claimed): | 150 hp
111.9 kW
|
| Drawbar (tested): | 132.7 hp
99.0 kW
|
| PTO (tested): | 179.8 hp
134.1 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Steering: | hydrostatic power
|
| Brakes: | differential hydraulic wet disc
|
| Trailer brakes: | hydraulic optional
|
| Cab: | Cab standard.
|
| Transmissions: | 17-speed full power shift
|
| | 18-speed full power shift
|
| | 19-speed full power shift
|
| | continuously variable transmission (CVT)
|
| Photos |

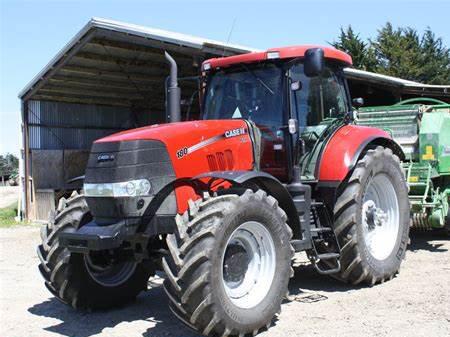

| | CaseIH Puma 180 photos... |
| Capacity |
| Fuel: | 116 gal
439.1 L *Early
|
| | 107 gal
405.0 L *Late
|
| Hydraulic system: | 26.5 gal
100.3 L
|
| Hydraulics |
| Type: | pressure flow compensating (PFC)
|
| Capacity: | 26.5 gal
100.3 L
|
| Valves: | 3 to 5
|
| Pump flow: | 31.7 gpm
120.0 lpm *Standard flow with power shift transmission
|
| | 39.6 gpm
149.9 lpm *Standard flow with CVT transmission, optional with power shift.
|
| | 45 gpm
170.3 lpm *Optional flow with CVT transmission.
|
| Total flow: | 48.7 gpm
184.3 lpm *Standard flow with power shift transmission
|
| | 56.6 gpm
214.2 lpm *Standard flow with CVT transmission, optional with power shift.
|
| | 62 gpm
234.7 lpm *Optional flow with CVT transmission.
|
| Steering flow: | 17 gpm
64.3 lpm
|
| Tractor hitch |
| Rear Type: | II/IIIN
|
| Rear lift (at ends): | 12,787 lbs
5800 kg
|
| | 15,873 lbs
7199 kg (optional)
|
| Rear lift (at 24"/610mm): | 10,900 lbs
4944 kg
|
| | 13,600 lbs
6168 kg (optional)
|
| Front Hitch: | optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000 (1-3/8)
|
| | 1000 (1-3/4)
|
| | 1000/1000E (with CVT)
|
| Front PTO: | optional
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 113.6 inches
288 cm
|
| Weight: | 15708 to 17595 pounds
|
| Front tire: | 16.9R30
|
| Rear tire: | 20.8R42
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 150
|
| Battery CCA: | 1300
|
| Battery volts: | 12
|
|
