Power: 330 hp Date of manufacture : 2006 - 2007

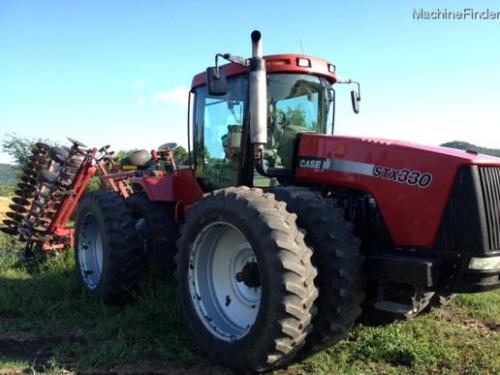

Production Manufacturer: CaseIH Type: Four-wheel Drive (4WD) tractor Factory: Fargo, North Dakota, USA CaseIH STX330 Power Engine: 330 hp 246.1 kW PTO (claimed): 269 hp 200.6 kW Drawbar (tested): 258.63 hp 192.9 kW PTO (tested): 323.31 hp 241.1 kW CaseIH STX330 Engine Mechanical Chassis: 4x4 articulated 4WD Final drives: inboard 3-planetary   inboard 4-planetary (STX330 HD) Steering: hydrostatic power Brakes: integrated hydraulic wet disc Cab: Surveyor cab standard with air-conditioning. Optional luxury cab with leather trim and seating. Transmissions: 16-speed full power shift   24-speed fully synchronized Hydraulics Type: pressure flow compensated Valves: 4 Pump flow: 40 gpm 151.4 lpm   55 gpm 208.2 lpm (High capacity)   90 gpm 340.7 lpm (TwinFlow) Tractor hitch Rear Type: IVN/III Rear lift (at 24"/610mm): 15669 lbs 7107 kg Power Take-off (PTO) Rear PTO: independent*Optional Rear RPM: 1000 (1.75) Dimensions & Tires Wheelbase: 139 inches 353 cm Weight: 32295 lbs 14649 kg Front tire: 480/80R46 Rear tire: 480/80R46 Full dimensions and tires ... Electrical Ground: negative Battery volts: 12

CaseIH Puma 240	Power: 240 hp	Date of manufacture : 0000 - 0000

CaseIH STX275	Power: 275 hp	Date of manufacture : 2000 - 2005

CaseIH STX280	Power: 280 hp	Date of manufacture : 2006 - 0000

CaseIH STX325	Power: 325 hp	Date of manufacture : 2000 - 2005

CaseIH STX330	Power: 330 hp	Date of manufacture : 2006 - 2007

CaseIH STX375	Power: 375 hp	Date of manufacture : 2000 - 2005

CaseIH STX375QT	Power: 375 hp	Date of manufacture : 2002 - 2005

CaseIH STX380	Power: 380 hp	Date of manufacture : 2006 - 2007

CaseIH STX380QT	Power: 380 hp	Date of manufacture : 2006 - 0000
