Navigation: Home > Centaur > AG-48

Centaur AG-48 Tractors

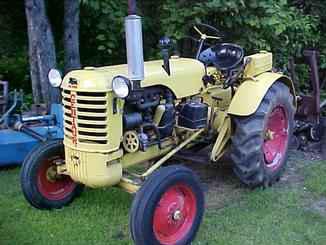

Centaur AG-48
Power: 27 hp
Date of manufacture :
1948 - 1950
Production
Distributor:Centaur
Manufacturer:Le Roi
Type:Standard-tread tractor
Factory:Greenwich, Ohio, USA
Centaur AG-48 Power
Drawbar (claimed):20 hp
14.9 kW
Belt (claimed):25 hp
18.6 kW
Drawbar (tested):20.28 hp
15.1 kW
Belt (tested):24.00 hp
17.9 kW
Centaur AG-48 Engine
Mechanical
Chassis:4x2 2WD
Transmission:4-speed unsynchronized gear
Dimensions & Tires
Weight:2,700 lbs
1224 kg
Front tire:5.00-15
Rear tire:9-24
Full dimensions and tires ...
Belt Pulley
Diameter:6 inches
15 cm
Width:6.25 inches
15 cm
RPM:1500
Speed:2756 ft/min
840.03 meters/min
