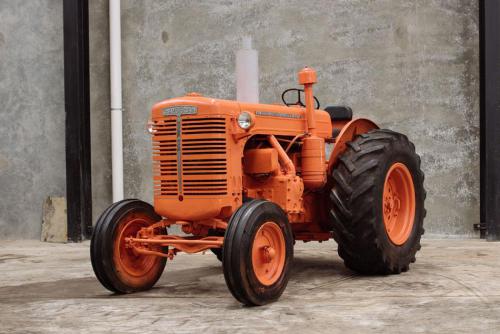

Chamberlain 40KA Tractors
 |
|
Power: 48 hp
Date of manufacture : 1949 - 1954 |
| Production |
| Manufacturer: | Chamberlain
|
| Type: | Standard-tread tractor
|
| Factory: | Welshpool, Australia
|
| Total built: | 1,484
|
| Variants |
| 40K: | wide gear ratio
|
| 40KA: | close gear ratio
|
| Chamberlain 40KA Power |
| Engine: | 48.5 hp
36.2 kW
|
| Belt (claimed): | 40 hp
29.8 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Final drives: | bull gear
|
| Steering: | mechanical - recirculating ball
|
| Cab: | Open operator station.
|
| Transmission: | 9-speed
|
| Power Take-off (PTO) |
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 83 inches
210 cm
|
| Weight: | 8500 lbs
3855 kg
|
| Front tire: | 7.50x18
|
| Rear tire: | 15.00x30
|
| Full dimensions and tires ... |
| 40KA Serial Numbers |
| 10/1950: | 404
|
| 1/1951: | 471
|
| 12/1951: | 1226
|
| 12/1952: | 1490
|
| 12/1953: | 1834
|
| Final: | 1887
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 13 inches
33 cm
|
| Width: | 7 inches
17 cm
|
| RPM: | 810
|
| Speed: | 2740 ft/min
835.15 meters/min
|
|
