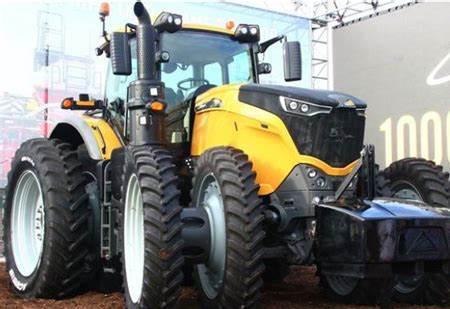

Challenger 1046 Tractors

Challenger 1046
Power: 476 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Challenger (a part of AGCO)
Type:Row-Crop tractor
Factory:Marktoberdoft, Germany
Original price:$418,820 (2019 )
Challenger 1046 Power
Engine (gross):476 hp
355.0 kW
PTO (claimed):421 hp
313.9 kW
Drawbar (tested):382.7 hp
285.4 kW
PTO (tested):443.0 hp
330.3 kW
Challenger 1046 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard with air-conditioning. Auto-Guide
 AccuField Command
 AgControl
Transmission:continuously-variable transmission
Hydraulics
Type:load-sensing
Valves:up to 6
Pump flow:58 gpm
219.5 lpm
 113.5 gpm
429.6 lpm *Optional, with additional 55.5GPM pump.
Tractor hitch
Rear Type:IV/IVN
Rear lift (at ends):18631 lbs
8451 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000/1000E
Dimensions & Tires
Wheelbase:130 inches
330 cm
Weight:32734 lbs
14848 kg
Front tire:650/65R38
Rear tire:750/75R46
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:320*Two 160A alternators.
Batteries:2
Battery volts:12
