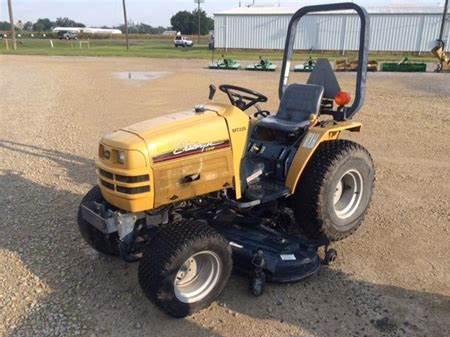

Challenger MT225 Tractors
 |
|
Power: 23 hp
Date of manufacture : 2003 - 2005 |
| Production |
| Distributor: | Challenger (a part of AGCO)
|
| Manufacturer: | Iseki
|
| Type: | Compact Utility tractor
|
| Factory: | Matsuyama, Japan
|
| Challenger MT225 Power |
| Engine (gross): | 23.3 hp
17.4 kW
|
| PTO (claimed): | 19 hp
14.2 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | dry shoe
|
| Cab: | Two-post fixed ROPS.
|
| Transmission: | hydrostatic
|
| Hydraulics |
| Type: | open center
|
| Pressure: | 1930 psi
133.1 bar
|
| Pump flow: | 5.4 gpm
20.4 lpm
|
| Total flow: | 7.9 gpm
29.9 lpm
|
| Steering flow: | 2.5 gpm
9.5 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position control
|
| Rear lift (at ends): | 1,210 lbs
548 kg
|
| Rear lift (at 24"/610mm): | 694 lbs
314 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| Mid PTO: | independent
|
| Mid RPM: | 2000
|
| Dimensions & Tires |
| Wheelbase: | 59.5 inches
151 cm
|
| Weight: | 1,672 lbs
758 kg
|
| Front tire: | 5.00-12
|
| Rear tire: | 9.5-16
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
|
