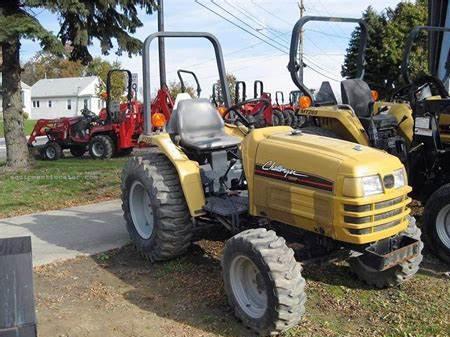

Challenger MT255 Tractors
 |
|
Power: 28 hp
Date of manufacture : 2003 - 2005 |
| Production |
| Distributor: | Challenger (a part of AGCO)
|
| Manufacturer: | Iseki
|
| Type: | Compact Utility tractor
|
| Factory: | Matsuyama, Japan
|
| Challenger MT255 Power |
| Engine (gross): | 28.4 hp
21.2 kW
|
| PTO (claimed): | 28.4 hp
21.2 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Cab: | Two-post fixed ROPS.
|
| Transmission: | 9-speed constant mesh
|
| Hydraulics |
| Type: | open center
|
| Pressure: | 2130 psi
146.9 bar
|
| Pump flow: | 7.4 gpm
28.0 lpm
|
| Total flow: | 9.9 gpm
37.5 lpm
|
| Steering flow: | 2.5 gpm
9.5 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position control
|
| | draft control*Optional
|
| Rear lift (at ends): | 1,984 lbs
899 kg
|
| Rear lift (at 24"/610mm): | 1,323 lbs
600 kg
|
| Power Take-off (PTO) |
| Rear PTO: | live
|
| Clutch: | dry disc
|
| Rear RPM: | 540 (1.375)
|
| Mid PTO: | optional
|
| Mid RPM: | 2000
|
| Dimensions & Tires |
| Wheelbase: | 64.5 inches
163 cm
|
| Weight: | 2,248 lbs
1019 kg
|
| Front tire: | 6-14
|
| Rear tire: | 12.4-16
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
|
