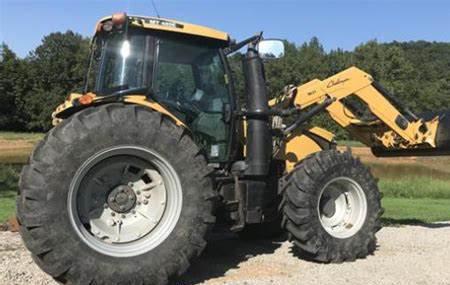

Challenger MT485E Tractors
 |
|
Power: 140 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Utility tractor
|
| Challenger MT485E Power |
| Engine: | 140 hp
104.4 kW
|
| PTO (claimed): | 130 hp
96.9 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | electro-hydraulic front and rear
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard with air-conditioning. Auto-Guide 3000*Optional
|
| Transmissions: | 16-speed four-speed power shift
|
| | 24-speed six-speed power shift
|
| | continuously-variable transmission
|
| Hydraulics |
| Type: | open center
|
| Valves: | up to 5
|
| Pump flow: | 26 gpm
98.4 lpm
|
| | 29 gpm
109.8 lpm *Optional
|
| | 50 gpm
189.3 lpm *Optional
|
| Tractor hitch |
| Rear Type: | III/II
|
| Rear lift (at 24"/610mm): | 11244 lbs
5100 kg
|
| Rear Arms: | telescopic link end
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| | 540/540E/1000/1000E
|
| Dimensions & Tires |
| Wheelbase: | 105 inches
266 cm
|
| Weight: | 15432 lbs
6999 kg
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 175
|
| | 240*Total charging capacity with optional twin 120A system.
|
| Battery volts: | 12
|
|
