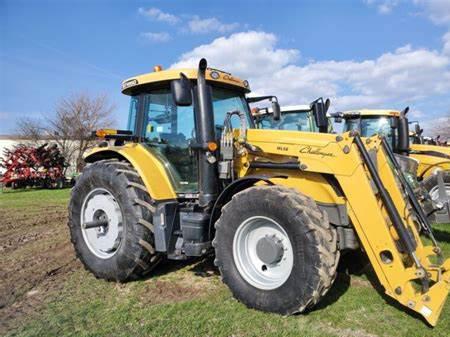

Challenger MT495D Tractors
 |
|
Power: 150 hp
Date of manufacture : 2014 - 2016 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Utility tractor
|
| Challenger MT495D Power |
| Engine (gross): | 150 hp
111.9 kW
|
| PTO (claimed): | 120 hp
89.5 kW (Techstar CVT)
|
| | 125 hp
93.2 kW (AutoPower VI)
|
| Drawbar (tested): | 98.7 hp
73.6 kW
|
| PTO (tested): | 140.7 hp
104.9 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | wet disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmissions: | 24-speed six speed power shift
|
| | continuously variable transmission (CVT)
|
| Hydraulics |
| Type: | closed center load sensing (CCLS)
|
| | open center optional
|
| Valves: | 2 to 4
|
| SCV flow: | 15 gpm
56.8 lpm (open center)
|
| | (26 gpm
0.0 lpm (open twin flow)
|
| | 29 gpm
109.8 lpm (CCLS)
|
| Tractor hitch |
| Rear Type: | III/II
|
| Control: | electronic lower link draft sensing
|
| Rear lift (at 24"/610mm): | 11400 lbs
5171 kg
|
| Drawbar: | Cat. 2
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| | 540/540E/1000
|
| | 540/540E/1000/1000E
|
| Dimensions & Tires |
| Wheelbase: | 105 inches
266 cm
|
| Weight: | 12500 lbs
5670 kg
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 175
|
| | 240 (2x 120)
|
| | 350 (2x 175)
|
| Batteries: | 2
|
| Battery CCA: | 600
|
| Battery volts: | 12
|
|
