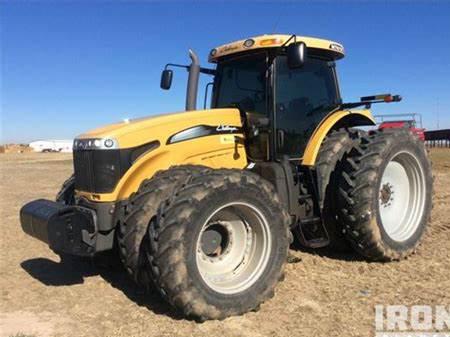

Challenger MT675C Tractors

Challenger MT675C
Power: 320 hp
Date of manufacture :
2009 - 2010
Production
Manufacturer:Challenger (a part of AGCO)
Type:Row-Crop tractor
Factory:Beauvais, France
Original price:$252,494 (2009 )
Variants
Massey Ferguson 8680
Challenger MT675C Power
Engine (gross):320 hp
238.6 kW
PTO (claimed):275 hp
205.1 kW
Drawbar (tested):240.7 hp
179.5 kW
PTO (tested):322.6 hp
240.6 kW
Challenger MT675C Engine
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:planetary
Differential lock:electro-hydraulic front and rear
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard with heat and air-conditioning. Optional heated seat, power adjustable mirrors, and automatic temperature control.
Transmission:continuously variable transmission
Hydraulics
Type:closed center load sensing
Pressure:2,901 psi
200.0 bar
Valves:4 to 6
Pump flow:26.4 gpm
99.9 lpm
Total flow:46.2 gpm
174.9 lpm
Tractor hitch
Rear Type:III
Control:electronic lower-link draft sensing
Rear lift (at ends):26,460 lbs
12002 kg
Rear lift (at 24"/610mm):21,336 lbs
9678 kg
Front lift (at ends):11,020 lbs
4998 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:1000E/1000 (1.75)
 540E/1000 (1.375)*Optional
Front PTO:independent*Optional
Front RPM:1000 (1.375)
Dimensions & Tires
Wheelbase:122.2 inches
310 cm
Weight:24,250 lbs
10999 kg
Front tire:480/70R34
Rear tire:520/85R46
MT675C Serial Numbers
Location:Serial number plate below the tractor cab door on the right side.
photo of MT675C serial number

Electrical
Ground:negative
Charging system:alternator
Charging amps:240*Two 120A alternators.
Batteries:2
Battery CCA:775
Battery volts:12
