Navigation: Home > Challenger > MT685D

Challenger MT685D Tractors

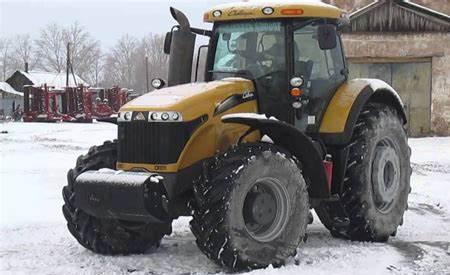

Challenger MT685D
Power: 340 hp
Date of manufacture :
2011 - 2013
Production
Manufacturer:Challenger (a part of AGCO)
Type:Row-Crop tractor
Factory:Jackson, Minnesota, USA
Original price:$335,497 (2014 )
Challenger MT685D Power
Engine (gross):340 hp
253.5 kW
PTO (claimed):290 hp
216.3 kW
Drawbar (tested):245.7 hp
183.2 kW
PTO (tested):333.2 hp
248.5 kW
Challenger MT685D Engine
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:inboard planetary
Differential lock:electro-hydraulic
Steering:hydrostatic power
Brakes:hydraulic wet disc
Trailer brakes:pneumatic (optional)
 hydraulic (optional)
Cab:Cab standard with air-conditioning and OptiRide Plus hydraulic suspension AGCO System 150 (optional)
 AGCOMMAND (optional)
Transmission:continuously variable transmission
Capacity
Fuel:167 gal
632.1 L
Exhaust fluid (DEF):16 gal
60.6 L
Hydraulic system:29.1 gal
110.1 L
Hydraulics
Type:closed center load sensing (CCLS)
Capacity:29.1 gal
110.1 L
Pressure:2900 psi
200.0 bar
Valves:4 to 6
SCV flow:26.4 gpm
99.9 lpm
Total flow:46 gpm
174.1 lpm
Tractor hitch
Rear Type:Cat III
Rear lift:22760 lbs
10323 kg
Front Hitch:Cat III (optional)
Front lift (at ends):11000 lbs
4989 kg
Drawbar:Cat. 3
 Cat. 3 Heavy-Duty (optional)
 Cat. 4 (optional)
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:1000/1000E (1.75)
 540E/1000/1000E (optional)
Engine RPM:540E@1577
1000E@1605
1000@1970
Dimensions & Tires
Wheelbase:122 inches
309 cm
Weight:24250 lbs
10999 kg
Front tire:480/70R34
Rear tire:520/85R46
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:240
Batteries:2
Battery volts:12
