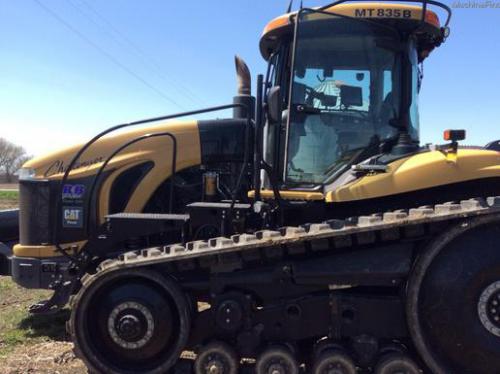

Challenger MT835B Tractors
 |
|
Power: 350 hp
Date of manufacture : 2005 - 2008 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Agricultural Crawler tractor
|
| Challenger MT835B Power |
| Engine: | 350 hp
261.0 kW
|
| PTO (claimed): | 290 hp
216.3 kW
|
| Drawbar (tested): | 276.33 hp
206.1 kW
|
| PTO (tested): | 362.83 hp
270.6 kW
|
| Mechanical |
| Chassis: | crawler
|
| Steering: | electro-hydraulic power
|
| Brakes: | wet disc
|
| Cab: | Cab standard.
|
| Transmission: | 16-speed full power shift
|
| Hydraulics |
| Type: | closed center PFC
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 4
|
| | 6*Optional
|
| Total flow: | 43.5 gpm
164.6 lpm
|
| | 59 gpm
223.3 lpm *Optional
|
| Tractor hitch |
| Rear Type: | III/IVN
|
| Rear lift: | 19500 lbs
8845 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tracks |
| Wheelbase: | 118 inches
299 cm
|
| Weight: | 43420 lbs
19695 kg
|
| tracks |
| Full dimensions and tracks ... |
| Electrical |
| Ground: | negative
|
| Charging amps: | 185
|
| Batteries: | 4
|
| Battery CCA: | 1000
|
| Battery volts: | 12
|
|
