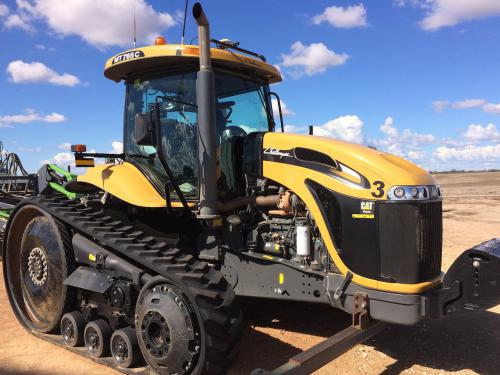

Challenger MT765C Tractors
 |
|
Power: 320 hp
Date of manufacture : 2009 - 2011 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Agricultural Crawler tractor
|
| Factory: | Jackson, Minnesota, USA
|
| Original price: | $242,898 (2009 )
|
| Challenger MT765C Power |
| Engine (gross): | 320 hp
238.6 kW
|
| PTO (claimed): | 265 hp
197.6 kW
|
| Drawbar (tested): | 228.21 hp
170.2 kW
|
| PTO (tested): | 320.72 hp
239.2 kW
|
| Mechanical |
| Chassis: | crawler
|
| Steering: | speed sensitive differential
|
| Trailer brakes: | hydraulic*Optional
|
| Cab: | Cab standard with air-conditioning.
|
| Transmission: | 16-speed full power shift
|
| Photos |
| | Challenger MT765C photos... |
| Hydraulics |
| Type: | closed center pressure-flow compensated
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 4 to 6
|
| Pump flow: | 36 gpm
136.3 lpm
|
| Total flow: | 43.5 gpm
164.6 lpm
|
| | 59 gpm
223.3 lpm *Optional
|
| Tractor hitch |
| Rear Type: | III/IIIN
|
| Rear lift: | 16,000 lbs
7257 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1.75)
|
| Dimensions & Tracks |
| Wheelbase: | 96 inches
243 cm
|
| Weight: | 31,075 lbs
14095 kg
|
| 18-inch belts |
| Full dimensions and tracks ... |
| MT765C Serial Numbers |
| Location: | Serial number plate on the main front left side of the tractor frame.
|
photo of MT765C serial number
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 185
|
| Batteries: | 2
|
| Battery CCA: | 1000
|
| Battery volts: | 12
|
|
