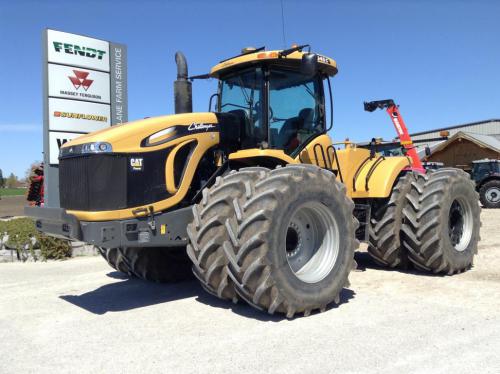

Challenger MT945C Tractors
 |
|
Power: 440 hp
Date of manufacture : 2009 - 2014 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Jackson, Minnesota, USA
|
| Original price: | $287,145 (2009 )
|
| Challenger MT945C Power |
| Engine: | 440 hp
328.1 kW
|
| PTO (claimed): | 360 hp
268.5 kW
|
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Final drives: | inboard planetary
|
| Steering: | articulated power
|
| Cab: | Cab standard with air-conditioning.
|
| Transmission: | 16-speed
|
| Hydraulics |
| Type: | closed center pressure-flow compensated
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 4 to 6
|
| Pump flow: | 36 gpm
136.3 lpm
|
| Total flow: | 43.5 gpm
164.6 lpm
|
| | 59 gpm
223.3 lpm *Optional
|
| Tractor hitch |
| Rear Type: | III/IVN
|
| | IV
|
| Rear lift: | 19,500 lbs
8845 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1.75)
|
| Dimensions & Tires |
| Wheelbase: | 155.5 inches
394 cm
|
| Weight: | 39,266 lbs
17811 kg
|
| Front tire: | 710/70R42
|
| Rear tire: | 710/70R42
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 185
|
| Batteries: | 4
|
| Battery CCA: | 1000
|
| Battery volts: | 12
|
|
