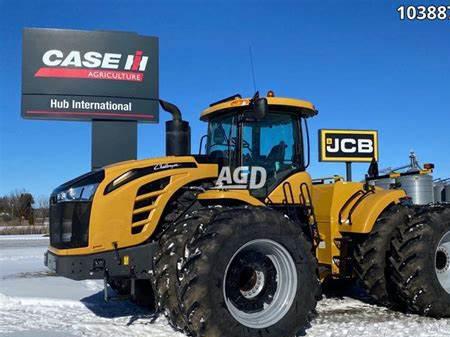

Challenger MT955E Tractors
 |
|
Power: 500 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Jackson, Minnesota, USA
|
| Challenger MT955E Power |
| Engine: | 500 hp
372.9 kW
|
| PTO (claimed): | 400 hp
298.3 kW
|
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Final drives: | inboard planetary
|
| Differential lock: | electro-hydraulic
|
| Steering: | articulated power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Pinnacle View Cab standard with air-conditioning. Auto-Guide 3000
|
| | AgCommand
|
| Transmission: | 16-speed power shift
|
| Hydraulics |
| Type: | closed center pressure-flow compensated
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 4 to 6
|
| Pump flow: | 58 gpm
219.5 lpm
|
| | 85 gpm
321.7 lpm *Optional
|
| SCV flow: | 37 gpm
140.0 lpm
|
| Tractor hitch |
| Rear lift: | 19500 lbs
8845 kg
|
| Drawbar: | Cat. 5
|
| | Cat. 4*Optional
|
| Dimensions & Tires |
| Weight: | 47500 lbs
21546 kg
|
| Front tire: | 710/70R42
|
| Rear tire: | 710/70R42
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 300*Twin 150A alternators.
|
| Batteries: | 4
|
| Battery volts: | 12
|
|
