Navigation: Home > Chamberlain > Super 70

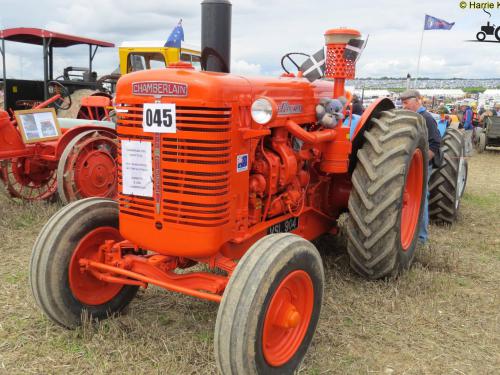

Chamberlain Super 70 Tractors
|
|
Power: 72 hp
Date of manufacture : 1954 - 1963 |
Production |
Manufacturer: | Chamberlain
|
Type: | Standard-tread tractor
|
Factory: | Welshpool, Australia
|
Total built: | 1,010
|
Chamberlain Super 70 Power |
Drawbar (claimed): | 52.5 hp 39.1 kW
|
Belt (claimed): | 65 hp 48.5 kW
|
Chamberlain Super 70 Engine |
Mechanical |
Chassis: | 4x2 2WD
|
Final drives: | bull gear
|
Cab: | Open operator station.
|
Transmission: | 9-speed sliding gear
|
Photos |
| Chamberlain Super 70 photos... |
Power Take-off (PTO) |
Rear RPM: | 540 (1.375)
|
Dimensions & Tires |
Wheelbase: | 83 inches 210 cm
|
Weight: | 9700 lbs 4399 kg
|
Front tire: | 7.50x18
|
Rear tire: | 23.1x26
|
Full dimensions and tires ... |
Super 70 Serial Numbers |
4/1954: | 191
|
12/54: | 289
|
12/1955: | 414
|
12/1956: | 417
|
12/1957: | 536
|
12/1958: | 676
|
12/1959: | 684
|
12/1960: | 977
|
12/1961: | 1079
|
12/1962: | 1138
|
Final: | 1200
|
how to read serial numbers...
|
Belt Pulley |
Diameter: | 13 inches 33 cm
|
Width: | 7 inches 17 cm
|
RPM: | 810
|
Speed: | 2740 ft/min 835.15 meters/min
|
|
