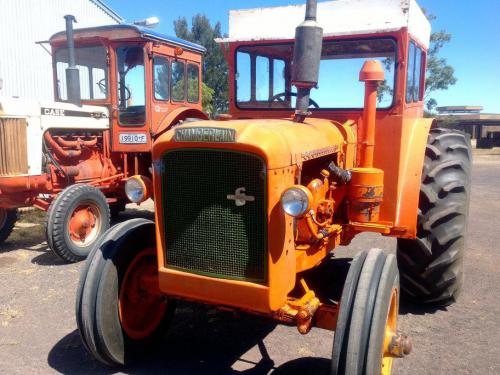

Chamberlain Countryman Tractors
|
|
Power: 76 hp
Date of manufacture : 1958 - 1962 |
Production |
Manufacturer: | Chamberlain
|
Type: | Standard-tread tractor
|
Factory: | Welshpool, Australia
|
Variants |
MkI: | 1958-1959
|
MkII: | 1960
|
MkIII: | 1961-1962
|
Chamberlain Countryman Power |
Engine: | 76 hp 56.7 kW
|
Drawbar (claimed): | 60 hp 44.7 kW
|
Belt (claimed): | 67 hp 50.0 kW
|
Chamberlain Countryman Engine |
Mechanical |
Chassis: | 4x2 2WD
|
Brakes: | internal expanding
|
Cab: | Open operator station.
|
Transmission: | 9-speed gear
|
Hydraulics |
Total flow: | 7.7 gpm 29.1 lpm (MkIII)
|
Power Take-off (PTO) |
Rear PTO: | indepenent
|
Rear RPM: | 540 (1.375)
|
Engine RPM: | 540@1600
|
Dimensions & Tires |
Wheelbase: | 86.5 inches 219 cm
|
Weight: | 9000 lbs 4082 kg
|
Front tire: | 8.25x20
|
Rear tire: | 15x30
|
Full dimensions and tires ... |
Countryman Serial Numbers |
1958: | 101
|
1959: | 1158
|
1960: | 1344
|
1961: | 1407 (Mk 3)
|
1961: | 1609 (Mk 3)
|
1962: | 1828 (Mk 3)
|
Final: | 2003 (Mk 3)
|
how to read serial numbers...
|
Belt Pulley |
Diameter: | 10.25 inches 26 cm
|
Width: | 6.25 inches 15 cm
|
Speed: | 3100 ft/min 944.88 meters/min
|
|
