Chery RD304 Tractors

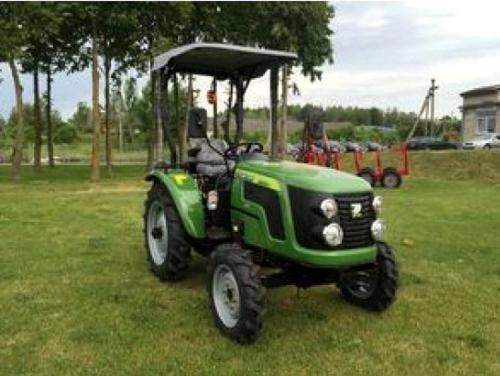

Chery RD304
Power: 30 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Chery
Type:Compact Utility tractor
Factory:China
Variants
RD300:2WD
RD304:4WD
Chery RD304 Power
Engine (gross):30 hp
22.4 kW
PTO (claimed):26.7 hp
19.9 kW
Chery RD304 Engines
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:hydraulic power
Brakes:pneumatic brake optional
Cab:Open operator station. Optional two-post ROPS and canopy.
Transmissions:8-speed gear
 8-speed shuttle
Tractor hitch
Control:position and float control
Rear lift (at 24"/610mm):1115.0 lbs
505 kg
Drawbar:fixed drawbar
 swinging drawbar optional
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540/720
 540/1000 (optional)
Dimensions & Tires
Wheelbase:70.1 inches
178 cm
Weight:3164 lbs
1435 kg
Front tire:6.5-16
Rear tire:11.2-24
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
