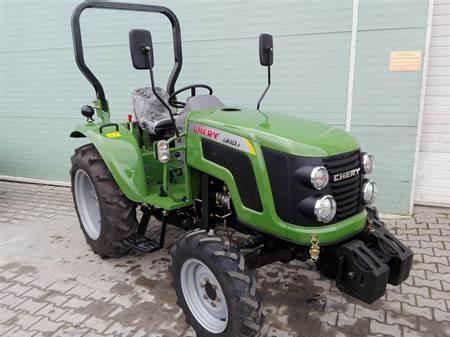

Chery RF304 Tractors

Chery RF304
Power: 30 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Chery
Type:Compact Utility tractor
Factory:China
Variants
RF300:2WD
RF304:4WD
Chery RF304 Power
Engine (gross):30 hp
22.4 kW
PTO (claimed):26.7 hp
19.9 kW
Chery RF304 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:hydraulic power
Brakes:pneumatic brakes optional
Cab:Open operator station. Optional ROPS and canopy.
Transmission:8-speed sliding gear
Tractor hitch
Control:position and float control
Rear lift (at 24"/610mm):1115 lbs
505 kg
Drawbar:fixed drawbar
 swinging drawbar optional
Power Take-off (PTO)
Rear PTO:transmission
Rear RPM:540/730
 540/1000 (optional)
Dimensions & Tires
Wheelbase:67.2 inches
170 cm
Weight:2866 lbs
1300 kg
Front tire:6.0-16
Rear tire:12.4-24
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
