Claas Arion 520 Tractors

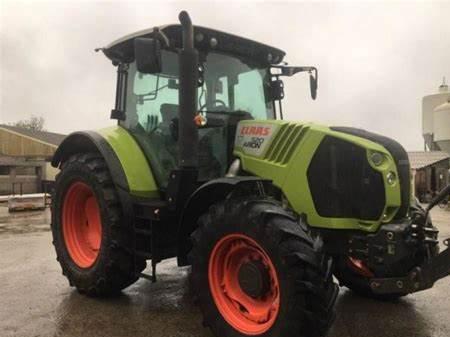

Claas Arion 520
Power: 120 hp
Date of manufacture :
2007 - 2011
Production
Manufacturer:Claas
Type:Row-Crop tractor
Claas Arion 520 Power
Engine:120 hp
89.5 kW
Claas Arion 520 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Trailer brakes:air (optional)
Cab:Cab standard with air-conditioning.
Transmission:24-speed partial power shift with power shuttle
Hydraulics
Type:open center
 load sensing (optional)
Pressure:2901 psi
200.0 bar
Valves:2 to 6
Total flow:15.9 gpm
60.2 lpm
 29.1 gpm
110.1 lpm (optional)
Power Take-off (PTO)
Rear RPM:540/1000
 540/540E/1000/1000E (optional)
Dimensions & Tires
Wheelbase:100.8 inches
256 cm
Weight:12,060 lbs
5470 kg
Front tire:14.9R28
Rear tire:18.4R38
Full dimensions and tires ...
