Production |
Manufacturer: | Claas
|
Type: | Row-Crop tractor
|

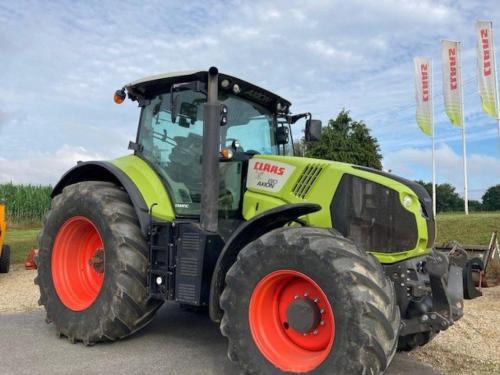

Claas Axion 810 Power |
Engine: | 178 hp 132.7 kW
|
Mechanical |
Chassis: | 4x4 MFWD 4WD
|
Cab: | cab with A/C
|
Transmission: | 24-speed
|
Hydraulics |
Type: | PFC
|
Pressure: | 2901 psi 200.0 bar
|
Valves: | 3 to 5
|
Total flow: | 29.06 gpm 110.0 lpm
|
Tractor hitch |
Rear lift: | 20,860 lbs 9462 kg
|
Front lift: | 7,275 lbs 3299 kg
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540/1000
|
| 540/540E/1000*Optional
|
Front PTO: | optional
|
Front RPM: | 1000
|
Dimensions & Tires |
Wheelbase: | 117.5 inches 298 cm
|
Weight: | 15,760 lbs 7148 kg
|
Front tire: | 16.9R28
|
Rear tire: | 20.8R38
|
Full dimensions and tires ... | |
