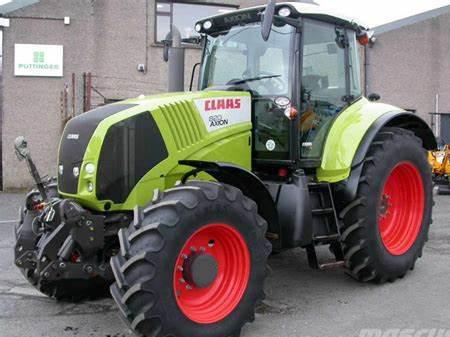

Claas Axion 820 Tractors

Claas Axion 820
Power: 197 hp
Date of manufacture :
2006 - 2016
Production
Manufacturer:Claas
Type:Row-Crop tractor
Claas Axion 820 Power
Engine:197 hp
146.9 kW
Claas Axion 820 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Cab:cab with A/C
Transmission:24-speed
Hydraulics
Type:PFC
Pressure:2901 psi
200.0 bar
Valves:3 to 5
Total flow:29.06 gpm
110.0 lpm
Tractor hitch
Rear lift:20,860 lbs
9462 kg
Front lift:7,275 lbs
3299 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
 540/540E/1000*Optional
Front PTO:optional
Front RPM:1000
Dimensions & Tires
Wheelbase:117.5 inches
298 cm
Weight:15,760 lbs
7148 kg
Front tire:16.9R28
Rear tire:20.8R38
Full dimensions and tires ...
