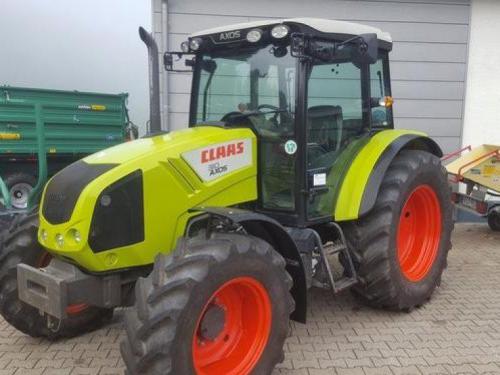

Claas Axos 310 C Tractors
|
|
Power: 75 hp
Date of manufacture : 2008 - 2018 |
Production |
Manufacturer: | Claas
|
Type: | Utility tractor
|
Factory: | Le Mans, France
|
Variants |
310C: | base model
|
10CL: | deluxe
|
310CX: | premium
|
Claas Axos 310 C Power |
Engine: | 75 hp 55.9 kW
|
Mechanical |
Chassis: | 4x4 MFWD 4WD
|
Cab: | Cab standard with heat and opening rear window. Optional air-conditioning, radio, opening front window, and sunroof. ROPS optional.
|
Transmissions: | 10-speed synchronized reverse
|
| 20-speed synchronized reverse
|
Hydraulics |
Valves: | up to 3
|
Total flow: | 15.9 gpm 60.2 lpm
|
Tractor hitch |
Rear Type: | II
|
Rear lift (at 24"/610mm): | 6,393 lbs 2899 kg
|
Front Hitch: | optional
|
Front lift: | 6,173 lbs 2800 kg
|
Power Take-off (PTO) |
Rear RPM: | 540/1000
|
| 540/540E (optional)
|
Front PTO: | optional
|
Front RPM: | 1000
|
Dimensions & Tires |
Wheelbase: | 98 inches 248 cm
|
Front tire: | 11.2R24
|
Rear tire: | 16.9R30
|
Full dimensions and tires ... | |
