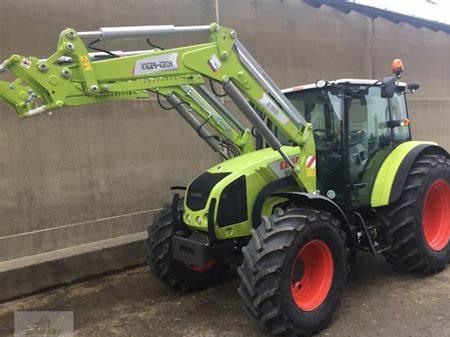

Claas Axos 340 C Tractors
 |
|
Power: 102 hp
Date of manufacture : 2008 - 2018 |
| Production |
| Manufacturer: | Claas
|
| Type: | Utility tractor
|
| Factory: | Le Mans, France
|
| Variants |
| 340C: | base model
|
| 340CL: | deluxe
|
| 340CX: | premium
|
| Claas Axos 340 C Power |
| Engine: | 102 hp
76.1 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Cab: | Cab standard with heat and opening rear window. Optional air-conditioning, radio, opening front window, and sunroof. ROPS optional.
|
| Transmissions: | 10-speed synchronized reverse
|
| | 20-speed synchronized reverse
|
| Hydraulics |
| Valves: | up to 3
|
| Total flow: | 15.9 gpm
60.2 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| | III/II (optional)
|
| Rear lift (at 24"/610mm): | 8,378 lbs
3800 kg
|
| Front Hitch: | optional
|
| Front lift: | 6,173 lbs
2800 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 540/1000
|
| | 540/540E (optional)
|
| Front PTO: | optional
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 98 inches
248 cm
|
| Front tire: | 13.6R28
|
| Rear tire: | 16.9R38
|
| Full dimensions and tires ... | |
