Cletrac F 9-16 Tractors

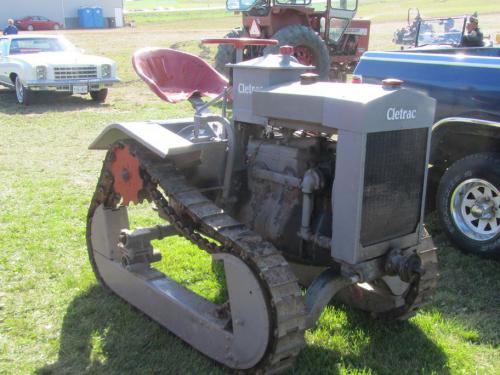

Cletrac F 9-16
Power: 17 hp
Date of manufacture :
1920 - 1922
Production
Manufacturer:Cletrac
Type:Agricultural Crawler tractor
Factory:Cleveland, Ohio, USA
Original price:$595 (1922 )
Cletrac F 9-16 Power
Drawbar (claimed):9 hp
6.7 kW
Belt (claimed):16 hp
11.9 kW
Plows:2 (12-inch)
Drawbar (tested):13.145 hp
9.8 kW
Belt (tested):19.61 hp
14.6 kW
Cletrac F 9-16 Engine
Mechanical
Chassis:crawler
Cab:Open operator station.
Transmission:1-speed gear
Photos
Cletrac F 9-16 photos...
Dimensions & Tracks
Weight:1865 lbs
845 kg
5.5-inch tracks
Full dimensions and tracks ...
F 9-16 Serial Numbers
Location:Serial number plate on top of differential housing.
photo of F 9-16 serial number

Belt Pulley
Diameter:7.5 inches
19 cm
Width:6 inches
15 cm
RPM:1600
Speed:3000 ft/min
914.40 meters/min
