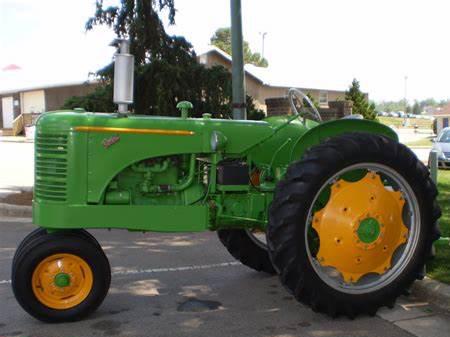

Corbitt G-50 Tractors

Corbitt G-50
Power: 38 hp
Date of manufacture :
1949 - 1952
Production
Manufacturer:Corbitt
Type:Row-Crop tractor
Factory:Henderson, North Carolina, USA
Variants
G-50:gasoline engine
K-50:kerosene engine
D-50:diesel engine
Corbitt G-50 Power
Plows:2 (14-inch)
Drawbar (tested):30.74 hp
22.9 kW
Belt (tested):34.63 hp
25.8 kW
Corbitt G-50 Engine
Mechanical
Chassis:4x2 2WD
Brakes:differential mechanical drum
Cab:Open operator station
Transmission:4-speed unsynchronized gear
Photos
Corbitt G-50 photos...
Dimensions & Tires
Wheelbase:86 inches
218 cm
Weight:3,567 lbs
1617 kg
Front tire:5.5x16
Rear tire:10x38
Full dimensions and tires ...
Belt Pulley
Diameter:8 inches
20 cm
Width:6.5 inches
16 cm
RPM:1210
Speed:2500 ft/min
762.00 meters/min
