Production |
Manufacturer: | Corbitt
|
Factory: | Henderson, North Carolina, USA
|
Variants |
G-50: | gasoline engine
|
K-50: | kerosene engine
|
D-50: | diesel engine
|

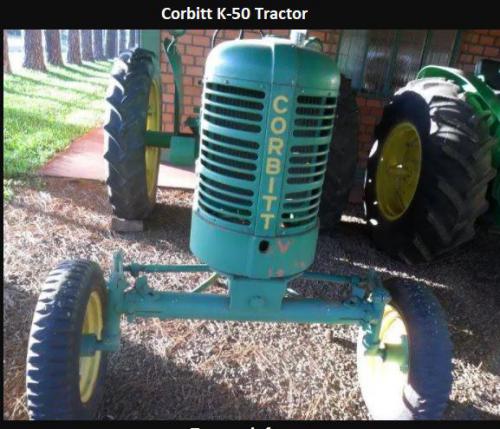

Corbitt K-50 Power |
Plows: | 2 (14-inch)
|
Drawbar (tested): | 30.74 hp 22.9 kW
|
Belt (tested): | 34.63 hp 25.8 kW
|
Mechanical |
Chassis: | 4x2 2WD
|
Brakes: | differential mechanical drum
|
Cab: | Open operator station
|
Transmission: | 4-speed unsynchronized
|
Dimensions & Tires |
Wheelbase: | 86 inches 218 cm
|
Weight: | 3,567 lbs 1617 kg
|
Front tire: | 5.5x16
|
Rear tire: | 10x38
|
Full dimensions and tires ... |
Belt Pulley |
Diameter: | 8 inches 20 cm
|
Width: | 6.5 inches 16 cm
|
RPM: | 1210
|
Speed: | 2500 ft/min 762.00 meters/min
|
|
