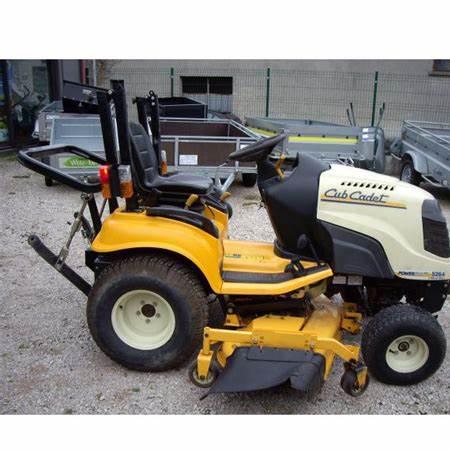

Cub Cadet 5264 Tractors

Cub Cadet 5264
Power: 26 hp
Date of manufacture :
2006 - 2008
Production
Manufacturer:Cub Cadet
Type:Sub-Compact Utility tractor
Original price:$9,500 (2007)
Cub Cadet 5264 Power
Engine:26 hp
19.4 kW
PTO (claimed):20 hp
14.9 kW
Cub Cadet 5264 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:hydrostatic power
Brakes:external dual disc
Cab:Two-post foldable ROPS.
Transmission:hydrostatic
Capacity
Fuel:5.6 gal
21.2 L
Hydraulic system:5 gal
18.9 L
Hydraulics
Type:open center
Capacity:5 gal
18.9 L
Pressure:1500 psi
103.4 bar
Valves:1 (optional)
Total flow:5.5 gpm
20.8 lpm
Tractor hitch
Rear Type:I
Rear lift (at ends):1,025 lbs
464 kg
Rear lift (at 24"/610mm):680 lbs
308 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Mid PTO:independent
Mid RPM:2000
Dimensions & Tires
Wheelbase:55 inches
139 cm
Weight:1350 lbs
612 kg
Front tire:18x9.5-8
Rear tire:26x12-12
Electrical
Ground:negative
Charging system:alternator
Charging amps:40
Battery CCA:500
Battery volts:12
