Cub Cadet 7193 Tractors

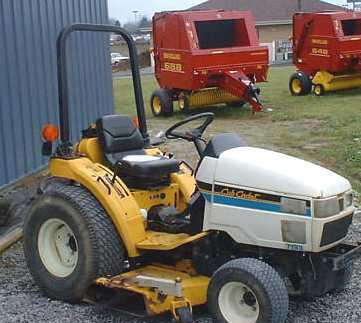

Cub Cadet 7193
Power: 19 hp
Date of manufacture :
1996 - 1997
Production
Distributor:Cub Cadet
Manufacturer:Mitsubishi
Type:Compact Utility tractor
Original price:$13,600 (1997)
Variants
7192:2WD Gear
7193:2WD Hydrostatic
7194:4WD Gear
7195:4WD Hydrostatic
Cub Cadet 7193 Power
Engine:19 hp
14.2 kW
PTO (claimed):15 hp
11.2 kW
Cub Cadet 7193 Engine
Mechanical
Chassis:4x2 2WD
Differential lock:rear standard
Steering:hydrostatic power
Brakes:expanding dry shoe
Cab:Two-post foldable ROPS.
Transmission:hydrostatic
Hydraulics
Type:open center
Pressure:2133 psi
147.1 bar
Pump flow:5.4 gpm
20.4 lpm
Steering flow:3.2 gpm
12.1 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift (at ends):1400 lbs
635 kg
Rear lift (at 24"/610mm):980 lbs
444 kg
Power Take-off (PTO)
Rear PTO:live independent
Rear RPM:540 (1.375)
Mid PTO:live independent
Mid RPM:2000
Dimensions & Tires
Wheelbase:57.9 inches
147 cm
Weight:1865 lbs
845 kg
Front tire:20x8.00-10
Rear tire:9.50-16
Electrical
Ground:negative
Battery volts:12
