Cub Cadet 7234 Tractors

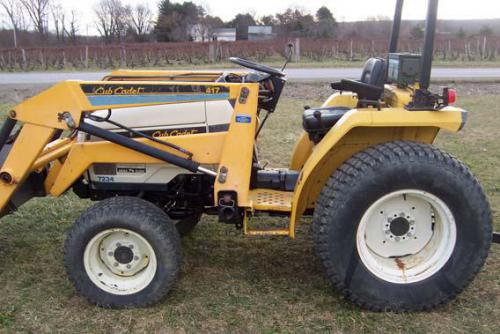

Cub Cadet 7234
Power: 23 hp
Date of manufacture :
1996 - 1997
Production
Distributor:Cub Cadet
Manufacturer:Mitsubishi
Type:Compact Utility tractor
Original price:$14,200 (1997 )
Variants
7232:2WD Gear
7233:2WD Hydrostatic
7234:4WD Gear
7235:4WD Hydrostatic
Cub Cadet 7234 Power
Engine:23 hp
17.2 kW
PTO (claimed):20 hp
14.9 kW
Cub Cadet 7234 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:rear standard
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS. Optional canopy.
Transmission:9-speed partially-synchronized gear
Hydraulics
Type:open center
Pressure:2133 psi
147.1 bar
Pump flow:7.2 gpm
27.3 lpm
Steering flow:3.2 gpm
12.1 lpm
Tractor hitch
Rear Type:I
Rear lift (at ends):2205 lbs
1000 kg
Rear lift (at 24"/610mm):1653 lbs
749 kg
Power Take-off (PTO)
Rear PTO:live*Two-stage foot clutch.
Rear RPM:540 (1.375)
Engine RPM:540@2356
Mid PTO:live*Two-stage foot clutch.
Mid RPM:2000 (1.0)
Engine RPM:2000@2421
Dimensions & Tires
Wheelbase:65 inches
165 cm
Weight:2510 lbs
1138 kg
Front tire:6.70-15
Rear tire:11.2-24
Electrical
Ground:negative
Battery volts:12
