Navigation: Home > Cub Cadet > 7200

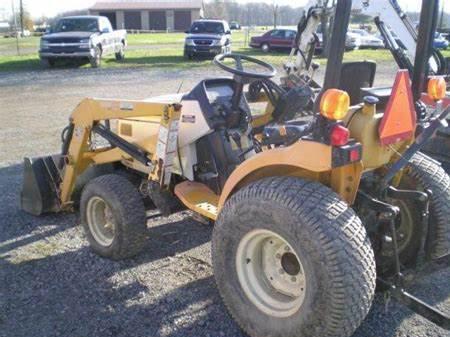

Cub Cadet 7200 Tractors

Cub Cadet 7200
Power: 20 hp
Date of manufacture :
1998 - 2003
Production
Manufacturer:Cub Cadet
Type:Sub-Compact Utility tractor
Original price:$12,600 (2003 )
Variants
7000:2WD gear
7200:4WD gear
7205:4WD hydro
Cub Cadet 7200 Power
Engine:20 hp
14.9 kW
PTO (claimed):17.5 hp
13.0 kW
Cub Cadet 7200 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:dry shoe
Cab:Two-post foldable ROPS.
Transmission:6-speed partially synchronized
Hydraulics
Type:open center
Pressure:2133 psi
147.1 bar
Pump flow:5.8 gpm
22.0 lpm
Total flow:9.2 gpm
34.8 lpm
Steering flow:3.4 gpm
12.9 lpm
Tractor hitch
Rear Type:I
Rear lift (at ends):1400 lbs
635 kg
Rear lift (at 24"/610mm):980 lbs
444 kg
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540
Mid PTO:live*Optional
Mid RPM:2000
Dimensions & Tires
Wheelbase:57.9 inches
147 cm
Weight:1964 lbs
890 kg
Front tire:6x12
Rear tire:9.5x16
Electrical
Ground:negative
Battery volts:12
