Cub Cadet Sx3100 Tractors
 |
|
Power: 31 hp
Date of manufacture : 2010 - 2011 |
| Production |
| Distributor: | Cub Cadet
|
| Manufacturer: | Yanmar
|
| Type: | Compact Utility tractor
|
| Variants |
| Sx3100 TD: | mower deck
|
| Sx3100 TL: | front loader
|
| Sx3100TLD: | loader and deck
|
| Sx3100 TLB: | loader backhoe
|
| Cub Cadet Sx3100 Power |
| Engine (gross): | 31.2 hp
23.3 kW
|
| Engine (net): | 30 hp
22.4 kW
|
| PTO (claimed): | 23.5 hp
17.5 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | bevel gear
|
| Steering: | hydraulic power
|
| Brakes: | wet disc
|
| Cab: | Two-post ROPS.
|
| Transmission: | hydrostatic
|
| Photos |

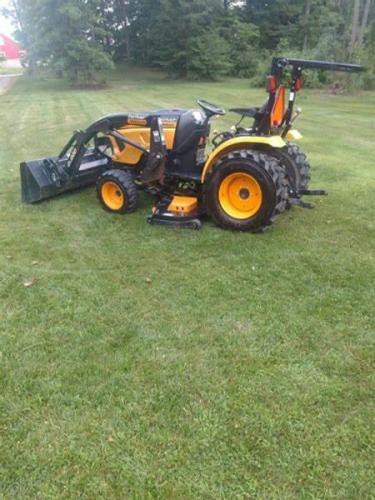

| | Cub Cadet Sx3100 photos... |
| Hydraulics |
| Type: | open center
|
| Pump flow: | 4.8 gpm
18.2 lpm
|
| Total flow: | 10.1 gpm
38.2 lpm
|
| Steering flow: | 5.3 gpm
20.1 lpm
|
| Tractor hitch |
| Rear Type: | 1
|
| Control: | position control
|
| Rear lift (at 24"/610mm): | 1,209 lbs
548 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Engine RPM: | 540@2495
|
| Mid PTO: | independent
|
| Mid RPM: | 2100
|
| Engine RPM: | 2100@2500
|
| Dimensions & Tires |
| Wheelbase: | 65.2 inches
165 cm
|
| Weight: | 2,030 lbs
920 kg
|
| Sx3100 Serial Numbers |
| Location: | Serial number plate on the right side of the Cub Cadet Yanmar Sx3100 tractor frame, above the front axle.
|
photo of Sx3100 serial number
| |
