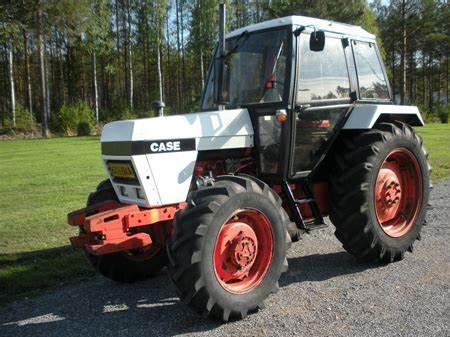

David Brown 1390 Tractors
|
|
Power: 66 hp[P]
Date of manufacture : 1980 - 1984 |
Production |
Manufacturer: | David Brown (a part of J.I. Case)
|
Type: | Utility tractor
|
Factory: | Meltham Mills, Huddersfield, England
|
Original price: | $22,100 (1983)
|
David Brown 1390 Power |
PTO (claimed): | 60 hp 44.7 kW
|
Drawbar (tested): | 50.26 hp 37.5 kW
|
PTO (tested): | 60.59 hp 45.2 kW
|
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD
|
Steering: | hydrostatic power
|
Brakes: | mechanical drum
|
Cab: | Two-post ROPS. Cab optional.
|
Transmission: | 12-speed synchromesh
|
Photos |
| David Brown 1390 photos... |
Capacity |
Fuel: | 19 gal 71.9 L
|
Hydraulic system: | 7.1 gal 26.9 L
|
Hydraulics |
Type: | open center
|
Capacity: | 7.1 gal 26.9 L
|
Valves: | 1 or 2
|
Pump flow: | 15.3 gpm 57.9 lpm
|
Tractor hitch |
Rear Type: | 2/1
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540/1000
|
Dimensions & Tires |
Wheelbase: | 84 inches 213 cm
|
Weight: | 5,500 lbs 2494 kg
|
Front tire: | 7.50-16
|
Rear tire: | 16.9-30
|
1390 Serial Numbers |
Location: | Serial number stamped into the top of the tractor's frame on the right side, next to the engine.
|
1980: | 11120101
|
1981: | 11122928
|
1982: | 11126132
|
1983: | 11130040
|
how to read serial numbers...
|
Electrical |
Ground: | negative
|
Charging system: | alternator
|
Charging amps: | 26
|
Battery volts: | 12
|
|
