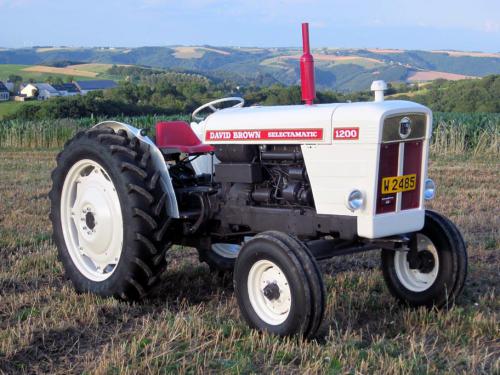

David Brown 1200 Tractors
|
|
Power: 72 hp
Date of manufacture : 1967 - 1971 |
Production |
Manufacturer: | David Brown
|
Factory: | Meltham Mills, Huddersfield, England
|
Original price: | $6,700 (1971 )
|
David Brown 1200 Power |
Engine (gross): | 72 hp 53.7 kW
|
PTO (claimed): | 64.6 hp 48.2 kW
|
Drawbar (tested): | 54.76 hp 40.8 kW
|
PTO (tested): | 65.23 hp 48.6 kW
|
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD*Four-wheel drive became an option in 1970.
|
Cab: | Open operator station.
|
Transmissions: | 6-speed gear
|
| 12-speed
|
Photos |
| David Brown 1200 photos... |
Hydraulics |
Type: | Selectamatic
|
Pump flow: | 6.86 gpm 26.0 lpm
|
Tractor hitch |
Rear Type: | II
|
Rear lift: | 2200 lbs 997 kg (working)
|
| 3450 lbs 1564 kg (rated)
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540
|
| 540/1000
|
Dimensions & Tires |
2WD Wheelbase: | 89 inches 226 cm
|
4WD Wheelbase: | 87 inches 220 cm
|
Weight: | 6230 to 6690 pounds
|
Front tire: | 7.50-16
|
Rear tire: | 13.6-38 (2WD)
|
Full dimensions and tires ... |
1200 Serial Numbers |
Location: | Clutch housing
|
1967: | 700001
|
1968: | 704433
|
1969: | 707958
|
1970: | 712203
|
1971: | 716091
|
how to read serial numbers...
| |
