Deere 5603 Tractors

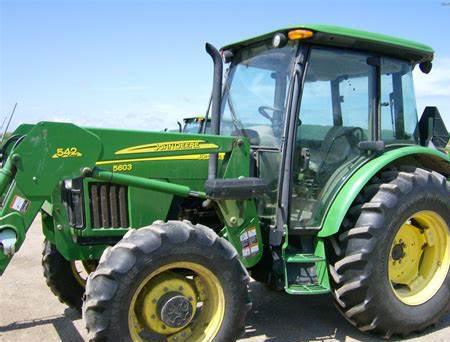

Deere 5603
Power: 75 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:John Deere
Type:Utility tractor
Factory:Montenegro, Brazil
John Deere 5603 Power
Engine:75 hp
55.9 kW
PTO (claimed):65 hp
48.5 kW
John Deere 5603 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Transmission:9-speed unsynchronized gear
Capacity
Fuel:18 gal
68.1 L
Hydraulic system:10.6 gal
40.1 L
Front hubs:0.85 qts
0.8 L (Dana)
 0.8 qts
0.8 L (ZF)
Front diff.:5.3 qts
5.0 L (Dana)
 4.2 qts
4.0 L (ZF)
Hydraulics
Type:open center
Capacity:10.6 gal
40.1 L
Pressure:2750 psi
189.6 bar
Valves:0 to 2
Total flow:10.6 gpm
40.1 lpm
Steering flow:6.8 gpm
25.7 lpm
Tractor hitch
Rear Type:II
Rear lift (at ends):5886 lbs
2669 kg
Rear lift (at 24"/610mm):3968 lbs
1799 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E
Engine RPM:540@2400
540E@1700
Dimensions & Tires
Wheelbase:85.7 inches
217 cm
Weight:5269 lbs
2390 kg
Front tire:7.50-16
Rear tire:16.9-30 (2WD)
Full dimensions and tires ...
5603 Serial Numbers
Location:Serial plate on the front-left tractor frame, above the front axle.
Electrical
Ground:negative
Charging system:alternator
Charging amps:40
Battery CCA:700
Battery volts:12
