Deere 6110 Tractors

Deere 6110
Power: 84 hp
Date of manufacture :
1999 - 2002
Production
Manufacturer:John Deere
Type:Utility tractor
Factory:Mannheim, Baden-Württemberg, Germany
Variants
6110:utlity tractor
6110L:low-profile
John Deere 6110 Power
Engine (gross):84 hp
62.6 kW
PTO (claimed):65 hp
48.5 kW
Drawbar (tested):61.9 hp
46.2 kW
PTO (tested):71.1 hp
53.0 kW
John Deere 6110 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:differential hydraulic wet disc
Cab:Two-post ROPS. ComfortGard cab optional with air-conditioning.
Transmissions:12-speed fully synchronized
 16-speed four-speed power shift

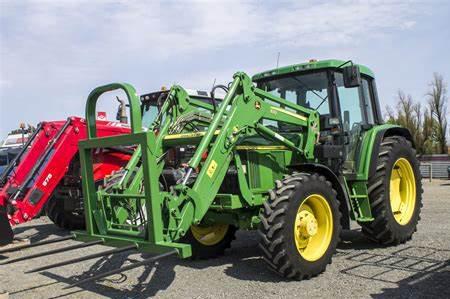

Photos
John Deere 6110 photos...
Hydraulics
Type:closed center pressure-flow compensating
Pressure:2900 psi
200.0 bar
Valves:1 to 4
Pump flow:25.4 gpm
96.1 lpm
 18.9 gpm
71.5 lpm *Optional
Tractor hitch
Rear Type:II
Control:electronic lower-link draft sensing
Rear lift:4745 lbs
2152 kg
Front Hitch:optional
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
 540/1000 (1.375)*Optional
Front PTO:independent*Optional
Front RPM:1000
Dimensions & Tires
Wheelbase:94.5 inches
240 cm
Weight:7420 to 9645 pounds
Front tire:7.50-18
2WD Rear tire:16.9-30
Electrical
Ground:negative
Charging system:alternator
ROPS Charging amps:90
Cab Charging amps:115
Battery CCA:830
 1230*Optional
Battery volts:12
Battery AH:110
 154*Optional
