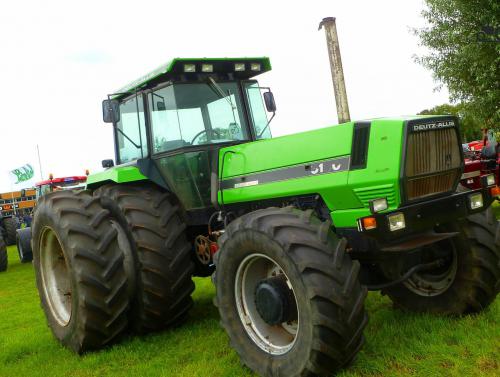

Deutz-Allis 9190 Tractors
 |
|
Power: 214 hp[P]
Date of manufacture : 1989 - 1990 |
| Production |
| Distributor: | Deutz-Allis
|
| Manufacturer: | White
|
| Type: | Row-Crop tractor
|
| Factory: | Coldwater, Ohio, USA
|
| Deutz-Allis 9190 Power |
| PTO (claimed): | 193 hp
143.9 kW
|
| Drawbar (tested): | 170.30 hp
127.0 kW
|
| PTO (tested): | 193.55 hp
144.3 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Steering: | hydrostatic power
|
| Brakes: | differential hydraulic wet disc
|
| Transmission: | 18-speed partial power shift
|
| Hydraulics |
| Type: | closed
|
| Valves: | 3
|
| Pump flow: | 23 gpm
87.1 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 119 inches
302 cm
|
| Weight: | 18,700 lbs
8482 kg
|
| Front tire: | 16.9R-28
|
| Rear tire: | 20.8R-38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
